| Pitster Pro's profilation of this bike |
| The motard inspired LXM has all the same features as the LXR series of bikes but also includes everything for night riding with the quick connect lighting kit. DOT approved Kenda tires get traction on whatever surface you find yourself. |
|
General information |
|
Model name
|

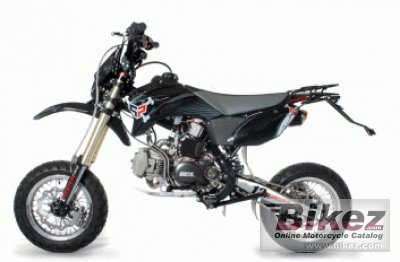

Pitster Pro LXM 155R Twelve Motard |
|
Model year
|
2012 |
|
Category
|
Super motard |
| Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
155.0 ccm (9.46 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
60.0 x 55.0 mm (2.4 x 2.2 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Outer rotor w/ lighting coil |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Five plate wet clutch |
|
Exhaust system
|
FMF Factory 4.1 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central Double Cradle Chromo W/ Tri Point Mounting, removable footpeg Design, Progressive Link. Subframe: Chromo Removable W/ Integrated Grab Handle. |
|
Front suspension
|
GPX Moto 35mm inverted forks w/ adj. compression and rebound on each leg |
|
Front wheel travel
|
203 mm (8.0 inches) |
|
Rear suspension
|
GPX DNM Piggy Back reservoir w/ adj. compression and rebound |
|
Rear wheel travel
|
249 mm (9.8 inches) |
|
Front tire
|
110/70-12 |
|
Rear tire
|
1.85-12 |
|
Front brakes
|
Single disc. W-Style Rotor w/ Floating Caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake). W-Style Rotor w/ Floating Caliper |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1600 mm (63.0 inches) |
|
Overall width
|
787 mm (31.0 inches) |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Wheelbase
|
1194 mm (47.0 inches) |
|
Fuel capacity
|
3.78 litres (1.00 US gallons) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Kick |
