| Piaggio's profilation of this bike |
| The Maximum level of Evolution.
|
|
General information |
|
Model
|

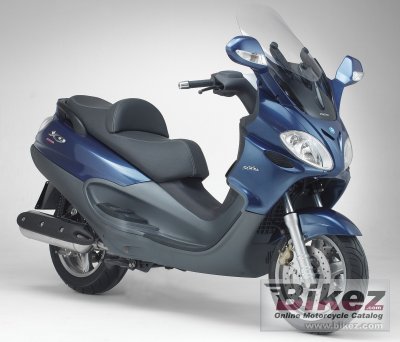

Piaggio X9 Evolution 500 |
|
Year of manufacture
|
2006 |
|
Type
|
Scooter |
|
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
460.0 ccm (28.07 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
39.0 HP (28.5 kW)) @ 7500 RPM |
|
Torque
|
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM |
|
Top speed
|
157.7 km/h (98.0 mph) |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
92.0 x 69.0 mm (3.6 x 2.7 inches) |
|
Ignition
|
Inductive |
|
Lubrication system
|
Separate with automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifuge type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high strength steel tube |
|
Front suspension
|
Telescopic hydraulic fork, stanchions Ø 41 mm, stroke 90 mm |
|
Rear suspension
|
Two dual effect hydraulic dampers, helic springs, adjustable to four positions of pre-load, stroke 90mm |
|
Front tire
|
120/70-14 |
|
Rear tire
|
150/70-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2140 mm (84.3 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1540 mm (60.6 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
