| Piaggio's profilation of this bike |
| X9 Evolution 250 is equipped with the latest Piaggio engine: QUASAR - QUArter liter Smooth-Augmented Range - 250, 4 valve, liquid cooled ,lightweight and compact.
|
|
General information |
|
Motorcycle name
|

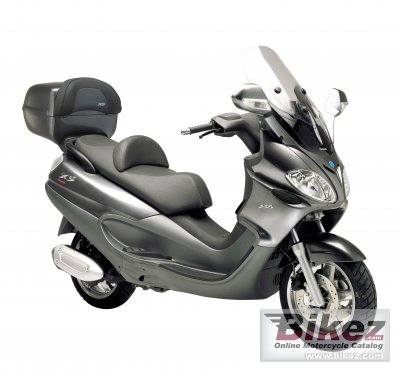

Piaggio X9 Evolution 250 |
|
Year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.4 ccm (15.22 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
29.5 HP (21.5 kW)) |
|
Torque
|
20.2 Nm (2.1 kgf-m or 14.9 ft.lbs) @ 6500 RPM |
|
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
|
Ignition
|
Inductive |
|
Lubrication system
|
Separate with automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifuge type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high resistance steel pipe structure |
|
Front suspension
|
Telehydraulic fork, Ø 35 mm stanchions , 90 mm stroke |
|
Rear suspension
|
Twin effect hydraulic absorbers with preload adjusters |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.1595 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2050 mm (80.7 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
15.20 litres (4.02 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
