| Piaggio's profilation of this bike |
| X9 Evolution 250 is equipped with the latest Piaggio engine born: QUASAR - QUArter liter Smooth-Augmented Range - 250, 4 valves, liquid cooled ,lightweight and compact.
|
|
General information |
|
Model
|

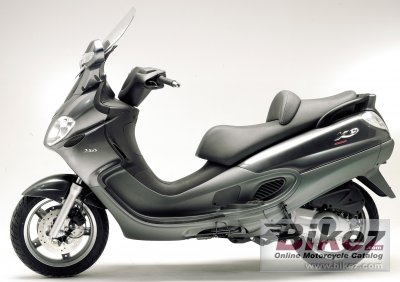

Piaggio X9 Evolution 250 |
|
Year
|
2005 |
|
Category
|
Scooter |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
244.3 ccm (14.91 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
|
Ignition
|
Electronic CDI |
|
Cooling system
|
Liquid |
|
Clutch
|
“Twist and Go” automatic dry centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high resistance steel pipe structure |
|
Front suspension
|
Telehydraulic fork, Ø 35 mm stanchions |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Twin effect hydraulic absorbers with preload adjusters |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
76.0 kg (167.6 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2130 mm (83.9 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
