| Piaggio's profilation of this bike |
| The Evolution boasts new and improved design and technical functions from a new front shield and rear view mirrors with built-in indicators improving the streamlined appearance of the bike to new chrome headlamps and a reinforced windscreen, which is adjustable to three positions.
|
|
General information |
|
Model
|

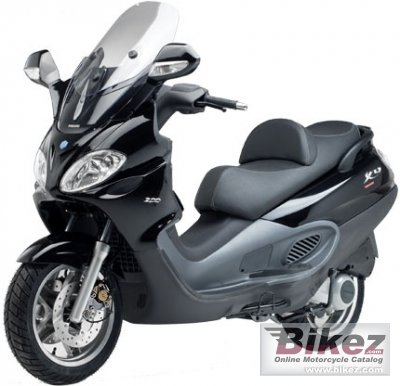

Piaggio X9 Evolution 125 |
|
Year
|
2007 |
|
Category
|
Scooter |
|
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
39.0 HP (28.5 kW)) @ 10000 RPM |
|
Torque
|
12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Lubrication system
|
Separate with automatic mixer |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifuge type |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic hydraulic fork, stanchions Ø 35 mm, stroke 90 mm |
|
Rear suspension
|
Twin hydraulic shock absorbers with preload adjuster |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
179.0 kg (394.6 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2130 mm (83.9 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
15.20 litres (4.02 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
