| Piaggio's profilation of this bike |
| Optimum ratio between cyclistic and engine power, handling. X9 125 Evolution is equipped with Piaggio LEADER 4 stroke 4 valves allowing top performances in its category in any driving conditions: easy handling, quick nipping thorugh the traffic, X9 125 Evolution affords any ´stop and go´ without loosing Maxi scooter comfort and protectiveness.
|
|
General information |
|
Model name
|

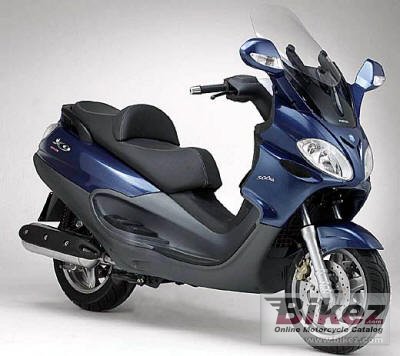

Piaggio X9 Evolution 125 |
|
Year of manufacture
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
20.1 HP (14.7 kW)) @ 10000 RPM |
|
Torque
|
12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Ignition
|
Electronic CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
“Twist and Go” automatic dry centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high strength steel tube |
|
Front suspension
|
Telescopic hydraulic fork, stanchions Ø 35 mm |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Twin hydraulic shock absorbers with preload adjuster |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
76.0 kg (167.6 pounds) |
|
Weight incl. oil, gas, etc
|
179.0 kg (394.6 pounds) |
|
Power/weight ratio
|
0.2646 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2130 mm (83.9 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
15.20 litres (4.02 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
