| Piaggio's profilation of this bike |
| Tough and reliable, this sporty scooter makes light work of city traffic. |
|
General moped information |
|
Model name
|

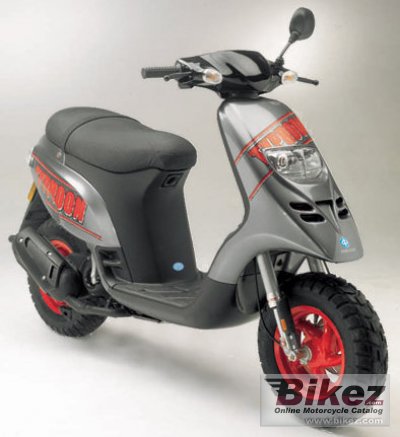

Piaggio Typhoon 50 |
|
Year model
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.3 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Separate with automatic mixer |
|
Cooling system
|
Air |
|
Clutch
|
Automatic centrifuge type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Welded steel tubes with pressed steel reinforcements |
|
Front suspension
|
Hydraulic telescopic fork with upside down shafts |
|
Rear suspension
|
Hydraulic double effect single damper, co-axial helicoidal spring |
|
Front tire
|
120/90-10 |
|
Rear tire
|
120/90-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
100 mm (3.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
81.0 kg (178.6 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1800 mm (70.9 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
