General information |
Motorcycle name
|

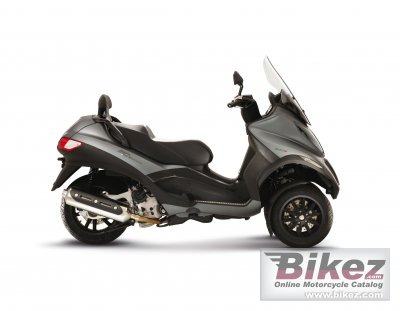

Piaggio MP3 Sport 500 |
Year of manufacture
|
2012 |
Type
|
Scooter |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
492.7 ccm (30.06 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
40.0 HP (29.2 kW)) @ 7250 RPM |
Torque
|
44.0 Nm (4.5 kgf-m or 32.5 ft.lbs) @ 5500 RPM |
Top speed
|
143.2 km/h (89.0 mph) |
Bore x stroke
|
94.0 x 71.0 mm (3.7 x 2.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Clutch
|
Automatic dry centrifugal |
Driveline
|
Twist-and-go CVT |
Chassis, suspension, brakes and wheels |
Frame type
|
Double cradle trellis made if high-strength steel tubes |
Front suspension
|
Tilting parallelogram with 4 arms supporting 2 steering tubes. |
Front wheel travel
|
85 mm (3.3 inches) |
Rear suspension
|
2 double acting hydraulic shock absorbers, swing arm. |
Rear wheel travel
|
110 mm (4.3 inches) |
Front tire
|
120/70-R12 |
Rear tire
|
140/70-R14 |
Front brakes
|
Double disc. Twin piston |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc. Twin piston |
Diameter
|
240 mm (9.4 inches) |
Wheels
|
Black rims |
Physical measures and capacities |
Dry weight
|
229.0 kg (504.9 pounds) |
Weight incl. oil, gas, etc
|
245.0 kg (540.1 pounds) |
Power/weight ratio
|
0.1747 HP/kg |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall height
|
1350 mm (53.1 inches) |
Overall length
|
2150 mm (84.6 inches) |
Wheelbase
|
1550 mm (61.0 inches) |
Fuel capacity
|
12.11 litres (3.20 US gallons) |
Other specifications |
Color options
|
Matte grey, black |
Factory warranty
|
1 year |
Comments
|
Two front wheels. Windshields. |
