Piaggio MP3 Business 500 20122012 Piaggio MP3 Business 500 specifications, pictures, reviews and rating |

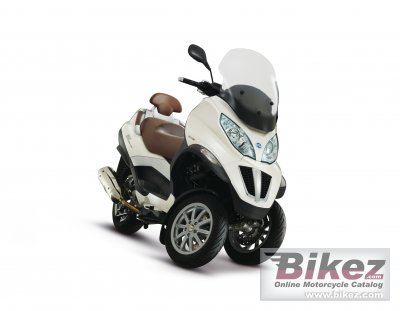

 2012 Piaggio MP3 Business 500. Picture credits - Piaggio. Submit more pictures.
|
| General information | |
|---|---|
| Motorcycle name | Piaggio MP3 Business 500 |
| Model year | 2012 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 492.7 ccm (30.06 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Piaggio Master engine |
| Power output | 40.0 HP (29.2 kW)) @ 7250 RPM |
| Torque | 46.5 Nm (4.7 kgf-m or 34.3 ft.lbs) @ 5500 RPM |
| Top speed | 145.0 km/h (90.1 mph) |
| Compression | 11.0:1 |
| Bore x stroke | 94.0 x 71.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic inductive discharge |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic dry centrifugal |
| Driveline | CVT |
| Emission details | Closed loop injection system with an oxygen sensor and a three-way catalytic converter. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle trellis made if high-strength steel tubes |
| Front suspension | Tilting parallelogram with 4 arms supporting 2 steering tubes. |
| Front wheel travel | 85 mm (3.3 inches) |
| Rear suspension | 2 double acting hydraulic shock absorbers, swing arm. |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 120/70-R12 |
| Rear tire | 140/60-R14 |
| Front brakes | Double disc. Twin piston |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc. Twin piston |
| Diameter | 240 mm (9.4 inches) |
| Wheels | Aluminium alloy |
| Seat | Dual |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 244.0 kg (537.9 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1350 mm (53.1 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 745 mm (29.3 inches) |
| Wheelbase | 1550 mm (61.0 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | Two front wheels. Windshields. |
