| Piaggio's profilation of this bike |

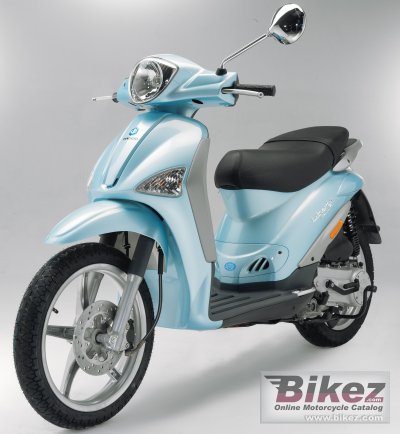

| Light and agile, with strong silhouette and high wheels Liberty 50 ensures protection and easy handling: Liberty 50 is perfect for city traffic.
Flat and wide footboard, accessible and low seat, clear instrument panel guarantee top functionaly and comfort.
|
|
General moped information |
|
Model
|
Piaggio Liberty 50 Catalyzed |
|
Model year
|
2005 |
|
Category
|
Scooter |
|
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.4 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Clutch
|
Dry automatic centrifugal type |
|
Fuel consumption
|
2.13 litres/100 km (46.9 km/l or 110.43 mpg) |
|
Greenhouse gases
|
49.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubes |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Hydraulic monoshock |
|
Rear wheel travel
|
83 mm (3.3 inches) |
|
Front tire
|
90/80-16 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
87.0 kg (191.8 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1900 mm (74.8 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Wheelbase
|
1330 mm (52.4 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
