| Piaggio's profilation of this bike |
| Equipped with the brilliant Piaggio Hi-PER2 50cc engine, widely acclaimed for its performance and economy, the Liberty 50 offers easy acceleration and reliability. |
|
General moped information |
|
Motorcycle name
|

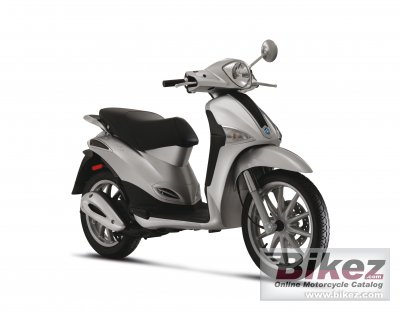

Piaggio Liberty 50 2T |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
|
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Clutch
|
Dry automatic centrifugal type |
|
Exhaust system
|
Euro 2 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubes |
|
Front suspension
|
Telescopic fork, 76 mm travel |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Hydraulic monoshock, 83 mm travel |
|
Rear wheel travel
|
83 mm (3.3 inches) |
|
Front tire
|
90/80-16 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc. calliper with opposed pistons |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
95.0 kg (209.4 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1900 mm (74.8 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Wheelbase
|
1330 mm (52.4 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Excalibur Silver, Black Graphite |
|
Starter
|
Electric & kick |
