| Piaggio's profilation of this bike |

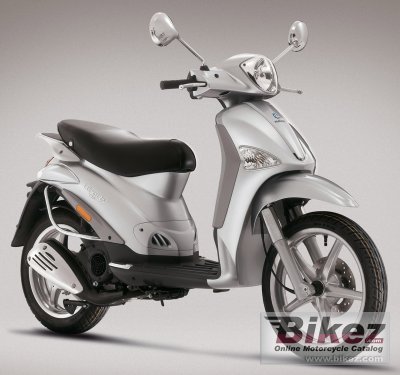

| The new Piaggio Liberty is the ultimate in scooter-chic - stylish, fun and easy to ride, it offers a new outlook on town or city life.
|
|
General information |
|
Motorcycle name
|
Piaggio Liberty 125 4 Stroke |
|
Model year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
10.0 HP (7.3 kW)) @ 8000 RPM |
|
Torque
|
10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 6500 RPM |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Inductive |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Clutch
|
Dry automatic centrifugal type |
|
Fuel consumption
|
3.57 litres/100 km (28.0 km/l or 65.89 mpg) |
|
Greenhouse gases
|
82.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubes |
|
Front suspension
|
Ø 140 32 telehydraulic fork, 76 mm travel |
|
Rear suspension
|
Hydraulic monoshock, 4 position spring preload, 85.5 mm travel |
|
Front tire
|
90/80-16 |
|
Rear tire
|
110/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
99.0 kg (218.3 pounds) |
|
Power/weight ratio
|
0.1010 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1935 mm (76.2 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Wheelbase
|
1335 mm (52.6 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
