| Piaggio's profilation of this bike |

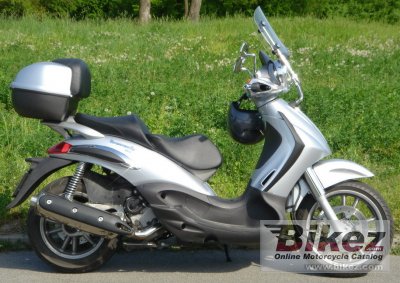

| The new Piaggio Maxi High Wheel Scooter; strong design and character.
|
|
General information |
|
Model
|
Piaggio B 500 |
|
Year model
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
460.0 ccm (28.07 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
39.0 HP (28.5 kW)) @ 7500 RPM |
|
Torque
|
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM |
|
Top speed
|
160.9 km/h (100.0 mph) |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
92.0 x 69.0 mm (3.6 x 2.7 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic inductive discharge ignition integrated with fuel injection |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high strength tubular steel lattice |
|
Front suspension
|
Telescopic hydraulic fork, stem Ø 41 mm |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Engine unit acts as swinging arm, with two dual-effect hydraulic dampers, helical springs adjustable to four positions of pre-load |
|
Rear wheel travel
|
90 mm (3.5 inches) |
|
Front tire
|
110/70-16 |
|
Rear tire
|
150/70-14 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
189.0 kg (416.7 pounds) |
|
Weight incl. oil, gas, etc
|
213.0 kg (469.6 pounds) |
|
Power/weight ratio
|
0.2063 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2215 mm (87.2 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1540 mm (60.6 inches) |
|
Fuel capacity
|
13.20 litres (3.49 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
