| Pagsta's profilation of this bike |
| The Eagles practicality, stability and agility combine with its 150cc engine as the ideal urban scooter. You have the power to keep up with the traffic and maneuverability to park down town. |
| General information |
|---|

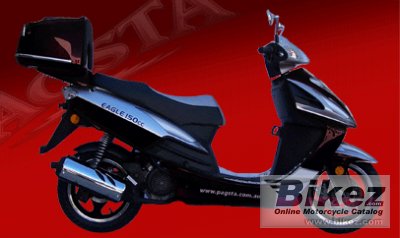

| Model: | Pagsta Eagle 150 |
| Year: | 2010 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 150.0 ccm (9.15 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 9.7 HP (7.1 kW)) @ 7500 RPM |
| Torque: | 10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 6500 RPM |
| Compression: | 10.5:1 |
| Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) |
| Ignition: | CDI, electric |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 130/60-13 |
| Rear tyre: | 130/60-13 |
| Front brakes: | Single disc |
| Diameter: | 155 mm (6.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 114.0 kg (251.3 pounds) |
| Power/weight ratio: | 0.0847 HP/kg |
| Seat height: | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height: | 1160 mm (45.7 inches) |
| Overall length: | 1960 mm (77.2 inches) |
| Overall width: | 715 mm (28.1 inches) |
| Ground clearance: | 80 mm (3.1 inches) |
| Wheelbase: | 1365 mm (53.7 inches) |
| Fuel capacity: | 6.60 litres (1.74 gallons) |
| Other specifications |
|---|
| Color options: | Red, blue, black |
| Starter: | Electric & kick |
