| Oxygen's profilation of this bike |
| Business use? Test our high cargo capacity: 70 kg rear box + 20 kg front carrier. Use the reverse gear, feel protected by the heavy-duty frame and coachwork protection. |
|
General information |
|
Model
|

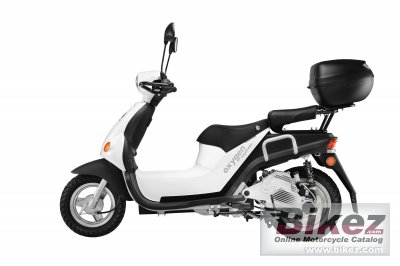

Oxygen CargoScooter XR |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine type
|
Electric |
|
Engine details
|
Direct Drive electric brushless motor |
|
Power
|
5.4 HP (3.9 kW)) @ 250 RPM |
|
Torque
|
150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) |
|
Top speed
|
45.1 km/h (28.0 mph) |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Air/oil telescopic fork |
|
Rear suspension
|
Paioli air/oil adjustable into 4 steps of 15 kg - 33 lb each |
|
Front tire
|
2.50-10 |
|
Rear tire
|
3.00-12 |
|
Front brakes
|
Expanding brake (drum brake). Energy recovery system (KERS) |
|
Rear brakes
|
Single disc |
|
Wheels
|
Front 10” x 2,5’’ |
|
Physical measures and capacities |
|
Dry weight
|
156.0 kg (343.9 pounds) |
|
Power/weight ratio
|
0.0344 HP/kg |
|
Overall height
|
700 mm (27.6 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Other specifications |
|
Color options
|
Blue, red, green |
|
Electrical
|
38,4 Volt battery. |
|
Carrying capacity
|
Undersaddle space 3 kg - 6 lb full face helmet with high seat. |
|
Comments
|
3 x 13V 110Ah battery. Recharging 5h. Range 90 km - 56 miles. Over 2000 cycles with more than 80% of capacity. |
