Orion Hyeng AGB-31-2 20122012 Orion Hyeng AGB-31-2 specifications, pictures, reviews and rating |

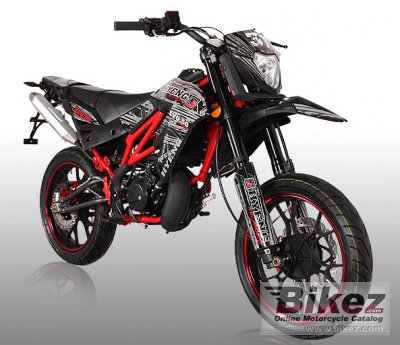

![]() 2012 Orion Hyeng AGB-31-2. Picture credits - Orion. Submit more pictures.
|
|
General moped information | |
---|---|
Model: | Orion Hyeng AGB-31-2 |
Year: | 2012 |
Category: | Super motard |
Rating: | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission | |
Displacement: | 49.50 ccm (3.02 cubic inches) |
Engine type: | Single cylinder, two-stroke |
Power: | 6.30 HP (4.6 kW)) @ 8500 RPM |
Top speed: | 45.0 km/h (28.0 mph) |
Compression: | 7.0:1 |
Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
Fuel system: | Carburettor. PZ19J-CL 19mm |
Ignition: | CDI |
Cooling system: | Liquid |
Gearbox: | 4-speed |
Transmission type, final drive: | Chain |
Chassis, suspension, brakes and wheels | |
Frame type: | High Strength Steel |
Front suspension: | 45mm Inverted tube front fork,Unadjustable |
Rear suspension: | Adjustable |
Front tyre: | 110/70-17 |
Rear tyre: | 130/70-17 |
Front brakes: | Single disc |
Rear brakes: | Single disc |
Wheels: | Heat treated 6 bolt alloy hub and alloy rim |
Physical measures and capacities | |
Seat height: | 860 mm (33.9 inches) If adjustable, lowest setting. |
Wheelbase: | 1,390 mm (54.7 inches) |
Fuel capacity: | 7.00 litres (1.85 gallons) |
Other specifications | |
Color options: | Black/red/white |
Starter: | Electric & kick |
Comments: | Made in China. |
