Orion AGB-35A 20082008 Orion AGB-35A specifications, pictures, reviews and rating |

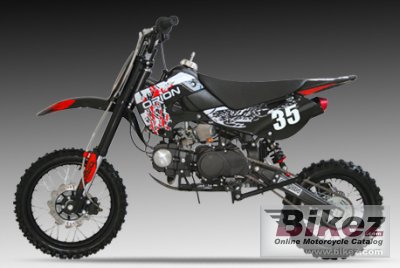

 2008 Orion AGB-35A. Picture credits - Orion. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Orion AGB-35A |
| Year | 2008 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 140.0 ccm (8.54 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 56.0 x 57.0 mm (2.2 x 2.2 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Gearbox | 4-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Normly upside down front shock |
| Rear suspension | Adjustable Rear suspension |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 67.0 kg (147.7 pounds) |
| Weight incl. oil, gas, etc | 82.0 kg (180.8 pounds) |
| Seat height | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height | 910 mm (35.8 inches) |
| Overall length | 1650 mm (65.0 inches) |
| Overall width | 750 mm (29.5 inches) |
| Wheelbase | 1170 mm (46.1 inches) |
| Fuel capacity | 12.11 litres (3.20 US gallons) |
| Other specifications | |
| Color options | Green, Yellow, Pink, Carbon Look, Orange, White |
| Starter | Kick |
| Comments | Also available with 125 and 150 cc engine. |
