General information |
|
Model name
|

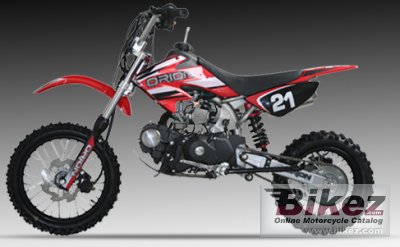

Orion AGB-21F |
|
Model year
|
2008 |
|
Category
|
Enduro / offroad |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Manual |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High Strength Steel |
|
Front suspension
|
Hydraulic Shock |
|
Rear suspension
|
Nitrogen Air Gas Shock |
|
Front tire
|
2.50-14 |
|
Rear tire
|
3.00-12 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
64.0 kg (141.1 pounds) |
|
Weight incl. oil, gas, etc
|
79.0 kg (174.2 pounds) |
|
Seat height
|
678 mm (26.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1600 mm (63.0 inches) |
|
Wheelbase
|
1100 mm (43.3 inches) |
|
Fuel capacity
|
3.02 litres (0.80 US gallons) |
|
Other specifications |
|
Color options
|
Black, Red, Green, Blue, Yellow |
|
Starter
|
Kick |
|
Comments
|
Available with other engine sizes like 70, 110 and 125 cc. |
