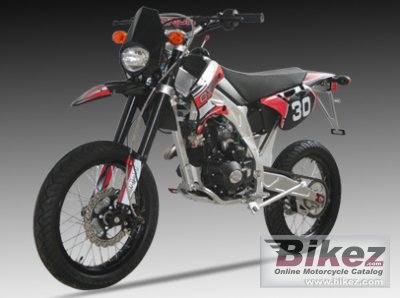

Orion A30E125M 20082008 Orion A30E125M specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Orion A30E125M |
| Year model | 2008 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.7:1 |
| Bore x stroke | 52.4 x 49.5 mm (2.1 x 1.9 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Auto |
| Chassis, suspension, brakes and wheels | |
| Frame type | High Strength Steel |
| Front suspension | Adjustable Inverted Hydraulic Forks |
| Rear suspension | TAI WAN Adjustable Rear suspension |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 110.0 kg (242.5 pounds) |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall height | 1300 mm (51.2 inches) |
| Overall length | 1880 mm (74.0 inches) |
| Overall width | 800 mm (31.5 inches) |
| Wheelbase | 1200 mm (47.2 inches) |
| Fuel capacity | 3.21 litres (0.85 US gallons) |
| Other specifications | |
| Color options | Green, Yellow, Pink, Carbon Look, Orange, White |
| Starter | Electric & kick |
| Comments | Also available with 50 cc engine. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 Orion A30E125M discussion group or the general Orion discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Orion. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2008 Orion A30E125M for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Orion bike | |
Engine performance for the 2008 Orion A30E125M:  (76.6 out of 100)Click here for complete rating. |
|
