| Norton's profilation of this bike |
| This modern roadster reflects the soul of the original machine. Classic sculptural forms are combined with raw functionalism, laying beautiful shapes over a structural frame and muscular motor; resulting in a visual language that is both sensual and purposeful. With a very narrow waist and curves in just the right places, the 961/SS is a bike that feels as good as it looks.
|
|
General information |
|
Motorcycle name
|

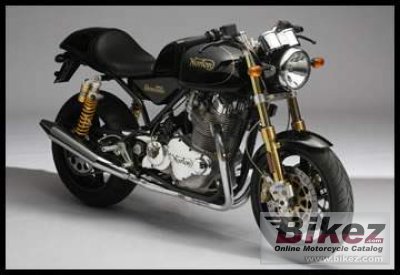

Norton Commando 961 SS Specs |
|
Year model
|
2006 |
|
Type
|
Naked bike |
|
Rating
|
3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
961.0 ccm (58.64 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
80.0 HP (58.4 kW)) @ 6500 RPM |
|
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 5200 RPM |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
88.0 x 79.0 mm (3.5 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Twin 39mm Keihin FCR |
|
Ignition
|
Crank fired electronic |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Cush drive clutch |
|
Exhaust system
|
1 3/4 inch header system with merged collector and twin mufflers with catalytic converters. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
4130 chromoly steel |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
43mm Ohlins RSU - Adjustable preload, compression, and rebound damping. |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Ohlins reservoir-style twin shocks - Adjstable ride height, preload, compression, and rebound damping. |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
120/70-X17 |
|
Rear tire
|
180/55-X17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
188.2 kg (415.0 pounds) |
|
Power/weight ratio
|
0.4250 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1435 mm (56.5 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Color options
|
Black |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Norton Commando 961 SS Specs discussion group or the general Norton discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Norton bike
|
Engine performance for the 2006 Norton Commando 961 SS Specs:
 (66.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
