General information |
|
Motorcycle name
|

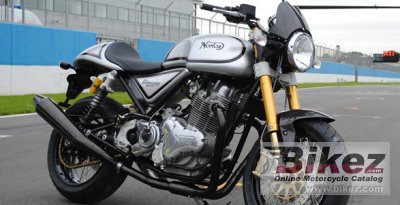

Norton Commando 961 SF |
|
Year model
|
2013 |
|
Type
|
Classic |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
961.0 ccm (58.64 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
Push-rod valve actuation, 3 bearing crank and balancer shaft. |
|
Effect
|
80.0 HP (58.4 kW)) @ 6500 RPM |
|
Torque
|
90.0 Nm (9.2 kgf-m or 66.4 ft.lbs) @ 5200 RPM |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
88.0 x 79.0 mm (3.5 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. EFI |
|
Ignition
|
Crank fired electronic |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate hydraulic lifter |
|
Driveline
|
Constant mesh 5 speed. Final drive: 525 “O” ring chain |
|
Emission details
|
Euro 3. Multiple 3 way catalytic converter. |
|
Exhaust system
|
Black chrome front pipes and reverse cone silencers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubular with integral oil tank |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
Ohlins USD |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
Ohlins |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Full Brembo system, 2 piston |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Black Alloy Rims |
|
Physical measures and capacities |
|
Dry weight
|
188.0 kg (414.5 pounds) |
|
Weight incl. oil, gas, etc
|
203.0 kg (447.5 pounds) |
|
Power/weight ratio
|
0.4255 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Black/gold, red/gold, silver |
|
Starter
|
Electric |
|
Instruments
|
Norton electronic analogue speedo and tachometer |
|
Electrical
|
Charging system: 300 watt hi-output charging system |
|
Comments
|
Carbon front mud guard, chain guard, rear wheel hugger, rear number plate hugger, headlight mounting, front and rear wheel.
|
