General information |
|
Model name
|

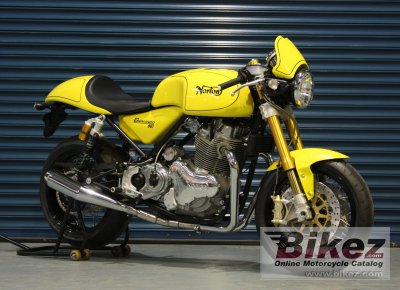

Norton Commando 961 Cafe Racer |
|
Year model
|
2011 |
|
Type
|
Classic |
|
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
961.0 ccm (58.64 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
Parallel twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft. |
|
Effect
|
80.0 HP (58.4 kW)) @ 6500 RPM |
|
Torque
|
90.0 Nm (9.2 kgf-m or 66.4 ft.lbs) @ 5200 RPM |
|
Bore x stroke
|
88.0 x 79.0 mm (3.5 x 3.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Ignition
|
Crank fired |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate hydraulic lifter |
|
Driveline
|
525 “O” ring chain |
|
Emission details
|
Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter |
|
Exhaust system
|
Café Racer Sports Exhaust. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubular with integral oil tank |
|
Rake (fork angle)
|
24.5° |
|
Front suspension
|
43mm Ohlins USD - Adjustable preload, compression and rebound damping. |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
Ohlins reservoir-style twin shocks - Adjustable ride height, reload, compression and rebound |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Full Brembo system, 2 piston “Gold Line” calliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Front wheel: 36 spoke 3.50 x 17” Black Rim. Rear wheel: 40 spoke 5.0 x 17” Black Rim |
|
Physical measures and capacities |
|
Dry weight
|
188.0 kg (414.5 pounds) |
|
Weight incl. oil, gas, etc
|
204.0 kg (449.7 pounds) |
|
Power/weight ratio
|
0.4255 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1420 mm (55.9 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Black/gold, Red/gold, yellow/black, silver/red/back
|
|
Starter
|
Electric |
|
Instruments
|
Norton electronic analogue speedo and tachometer |
