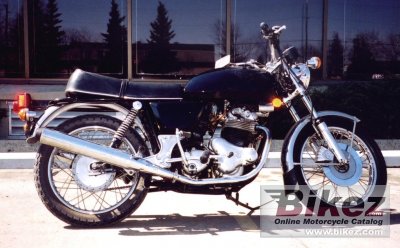

Norton Commando 850 Interstate 19741974 Norton Commando 850 Interstate specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Norton Commando 850 Interstate |
| Year model | 1974 |
| Type | Sport touring |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 828.0 ccm (50.52 cubic inches) |
| Type of engine | Twin, four-stroke |
| Effect | 51.0 HP (37.2 kW)) @ 6250 RPM |
| Top speed | 191.0 km/h (118.7 mph) |
| Compression | 8.5:1 |
| Bore x stroke | 77.0 x 89.0 mm (3.0 x 3.5 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 2 x 30mm Amal concentric |
| Fuel control | Overhead Valves (OHV) |
| Ignition | 12V, alternator |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks |
| Rear suspension | Dual shocks, 5-way adjustable |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Diameter | 178 mm (7.0 inches) |
| Physical measures and capacities | |
| Dry weight | 203.0 kg (447.5 pounds) |
| Weight incl. oil, gas, etc | 220.0 kg (485.0 pounds) |
| Power/weight ratio | 0.2512 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | 20W-50 |
| Brake fluid | DOT 4 |
| Spark plugs | NGK BP7ES, NGK BPR7EIX |
| Chain links | 99 |
| Sprockets | 26/57 (front/rear) |
| Tire pressure front | 25 PSI (1.7 Bar or 170 kPa) |
| Tire pressure rear | 26 PSI (1.8 Bar or 180 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
