| Nipponia's profilation of this bike |
| With its electronic info panel, innovative 4-stroke engine, sleek , unobtrusive yet practical lines, stainless steel exhaust and custom-designed wheels, this bike leads the field. |
|
General information |
|
Motorcycle name
|

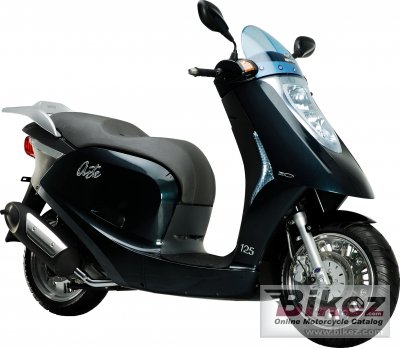

Nipponia Arte 125 |
|
Year model
|
2010 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.6 ccm (7.60 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
12.5 HP (9.1 kW)) @ 8000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Oil & air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry, automatically centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Front suspension |
|
Front suspension
|
Telescopic, hydraulic fork |
|
Rear suspension
|
Double hydraulic shock absorbers |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
130.0 kg (286.6 pounds) |
|
Power/weight ratio
|
0.0959 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1230 mm (48.4 inches) |
|
Overall length
|
2000 mm (78.7 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
