General moped information |
|
Model
|

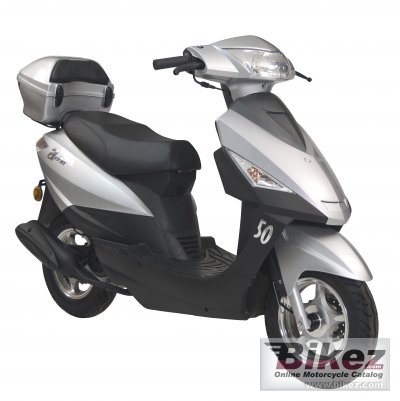

Nipponia Arion 50 |
|
Year of manufacture
|
2012 |
|
Type
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
3.6 HP (2.6 kW)) @ 7000 RPM |
|
Torque
|
3.1 Nm (0.3 kgf-m or 2.3 ft.lbs) @ 6000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry, automatically centrifugal type |
|
Driveline
|
CVT |
|
Emission details
|
Euro 2 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic, hydraulic fork |
|
Rear suspension
|
Double hydraulic shock absorbers |
|
Front tire
|
90/90-10 |
|
Rear tire
|
90/100-10 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
81.0 kg (178.6 pounds) |
|
Weight incl. oil, gas, etc
|
86.0 kg (189.6 pounds) |
|
Power/weight ratio
|
0.0444 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1070 mm (42.1 inches) |
|
Overall length
|
1660 mm (65.4 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Blue, white |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V |
|
Carrying capacity
|
Top box |
|
Comments
|
Nipponia is a Greek brand sold in Greece, Japan, Brazil, Dominican Republic, Venezuela and China. |
