General information |
|
Model name
|

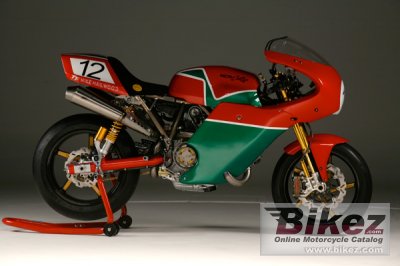

NCR Mike Hailwood TT |
|
Model year
|
2012 |
|
Category
|
Sport |
| Price as new | US$ 130000. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1120.0 ccm (68.34 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Ducati NCR 1120. Titanium connecting rods carved out of billet, high compression forged pistons with single piston ring, custom F1 type crankshaft from billet with longer stroke, NCR CORSE cams, titanium valves, ported heads. |
|
Power output
|
130.0 HP (94.9 kW)) @ 8700 RPM |
|
Torque
|
135.0 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 7000 RPM |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. NCR Corse-EFI, EFI Euro 1, NCR Racing Harness with interface with AMI MXL PISTA display. NCR-EFI system accepts full mapping capabilities along with Lambda interface for closed loop mapping control. |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
Full titanium exhaust. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
NCR titanium frame. |
|
Front suspension
|
Ohlins FGR 900 pressurized MotoGP fork tuned by NCR. Triple clamps made from AL 7075 with adjustable offset from 28 to 36 mm in 1 mm increments. |
|
Rear suspension
|
Ohlins dual shock tuned by NCR. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Single disc. WAVE Braking-NCR, radial Brembo Racing 4 piston monoblock |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. WAVE Braking-NCR, Brembo Racng 2 piston monoblock |
|
Diameter
|
200 mm (7.9 inches) |
|
Wheels
|
BST-NCR Carbon fiber wheels |
|
Physical measures and capacities |
|
Dry weight
|
136.0 kg (299.8 pounds) |
|
Power/weight ratio
|
0.9559 HP/kg |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Other specifications |
|
Color options
|
Red/green/white. Historical Mike Hailwood NCR colors with a pearl base. All air brushed (no stickers). |
|
Comments
|
Limited edition of 12 bikes. |
