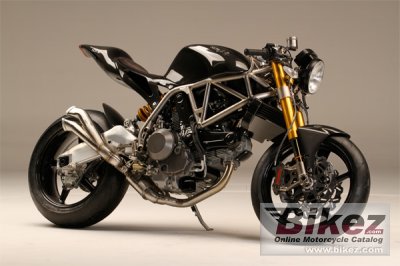

NCR M4 One Shot 20122012 NCR M4 One Shot specifications, pictures, reviews and rating |
| NCR's profilation of this bike |
| The NCR M4 One Shot comes with a NCR 1200, modified Ducati EVO 1100 engine complete with billet stroker crank, titanium connecting rods, high compressed 102mm pistons, titanium hardware throughout and NCR-EVR slipper clutch. |
| General information | |
|---|---|
| Model | NCR M4 One Shot |
| Year model | 2012 |
| Type | Sport |
| Price as new | US$ 69900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1200.0 ccm (73.22 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | NCR Modified Ducati 1100 EVO engine. |
| Effect | 132.0 HP (96.4 kW)) @ 8700 RPM |
| Torque | 143.0 Nm (14.6 kgf-m or 105.5 ft.lbs) @ 5100 RPM |
| Compression | 10.0:1 |
| Fuel system | Injection. EFI Magneti Marelli, 45mm throttle bodies. |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | NCR titanium frame weight 4.8 Kg (10.6 lbs). Subframe: NCR titanium subframe with Schedoni leather seat on a carbon fiber base. |
| Rake (fork angle) | 24.0° |
| Front suspension | Ohlins 43 mm upside-down fork with TiN surface treatment, adjustable off-set, radial calipers with NCR CORSE billet aluminum fork bottoms, tuned by NCR CORSE. Triple clamps made from billet AL 7075 with an adjustable offset of 24 to 32 mm in 2 mm incremen |
| Rear suspension | Fully adjustable Ohlins monoshock with eccentric adjustor. Tuned by NCR CORSE |
| Front tire | 120/70-R17 |
| Rear tire | 190/55-R17 |
| Front brakes | Double disc. WAVE discs, 4-piston 2-pad Brembo SBK radial caliper from billet. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. WAVE disc, 2-piston Brembo caliper from billet.. |
| Diameter | 200 mm (7.9 inches) |
| Seat | Leather seat produced by Schedoni. |
| Physical measures and capacities | |
| Dry weight | 126.0 kg (277.8 pounds) |
| Power/weight ratio | 1.0476 HP/kg |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Color options | Clear coat. Custom paint available on request. |
| Starter | Electric |
| Instruments | AIM MXL Display (Strada) with laptop interface. Laptop software and direct plug battery charger |
| Electrical | Lightweight lithium battery |
| Comments | Adjustable rear sets in AL 7075 and titanium, gas cap assembly in aluminum from billet, clip-ons in AL 7075 with titanium tubes, triple clamps from AL 7075 with adjustable offset from 24 to 32 mm, Ohlins steering damper with billet mount in titanium, billet oil fill plug, front fairing stay in aluminum, NCR 32mm slave master machined from billet, titanium oil reservoirs . NCR custom oil cooler. |
