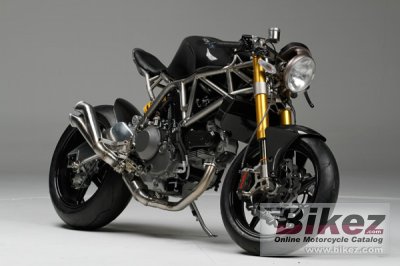

NCR M4 20122012 NCR M4 specifications, pictures, reviews and rating |
| NCR's profilation of this bike |
| The new NCR M4 derives from years of building and racing the NCR Millona to many victories and championships in many countries. The Millona is known for it´s light weight and amazing handling. Using the same basic geometry and concept, the M4 was designed to be as light or lighter in street trim than the original Millona was in race trim. |
| General information | |
|---|---|
| Motorcycle name | NCR M4 |
| Model year | 2012 |
| Category | Sport |
| Price as new | US$ 49900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1100.0 ccm (67.12 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Ducati 1100 EVO engine. |
| Power output | 107.0 HP (78.1 kW)) @ 7500 RPM |
| Torque | 115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 5100 RPM |
| Compression | 10.0:1 |
| Fuel system | Injection. EFI Magneti Marelli, 45mm throttle bodies. |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | NCR full stainless steel system with catalytic converter and exhaust valve 5.1 kg (11.2 lbs) |
| Chassis, suspension, brakes and wheels | |
| Frame type | NCR titanium frame weight 4.8 Kg (10.6 lbs). Subframe: NCR titanium subframe with Schedoni leather seat on a carbon fiber base. |
| Rake (fork angle) | 24.0° |
| Front suspension | Ohlins 43 mm upside-down fork with TiN surface treatment, adjustable off-set, radial calipers with NCR CORSE billet aluminum fork bottoms, tuned by NCR CORSE. Triple clamps made from billet AL 7075 with an adjustable offset of 24 to 32 mm in 2 mm incremen |
| Rear suspension | Fully adjustable Ohlins monoshock with eccentric adjustor. Tuned by NCR CORSE |
| Front tire | 120/70-R17 |
| Rear tire | 190/55-R17 |
| Front brakes | Double disc. WAVE discs, 4-piston 2-pad Brembo SBK radial caliper from billet. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. WAVE disc, 2-piston Brembo caliper from billet.. |
| Diameter | 200 mm (7.9 inches) |
| Wheels | BST-NCR Carbon fiber wheels |
| Seat | Leather seat produced by Schedoni. |
| Physical measures and capacities | |
| Dry weight | 130.0 kg (286.6 pounds) |
| Power/weight ratio | 0.8231 HP/kg |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Color options | Clear coat. Custom paint available on request. |
| Starter | Electric |
| Electrical | Lightweight lithium battery |
| Comments | Adjustable rear sets in AL 7075 and titanium, gas cap assembly in aluminum from billet, clip-ons in AL 7075 with titanium tubes, triple clamps from AL 7075 with adjustable offset from 24 to 32 mm, Ohlins steering damper with billet mount in titanium, billet oil fill plug, front fairing stay in aluminum, NCR 32mm slave master machined from billet, titanium oil reservoirs . NCR custom oil cooler |
