General information |
|
Model name
|

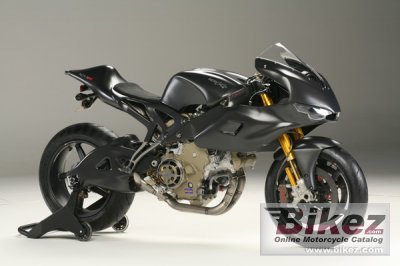

NCR M16 |
|
Year
|
2012 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Engine details
|
Ducati Desmo16RR engine tuned by NCR |
|
Power
|
200.0 HP (146.0 kW)) @ 7600 RPM |
|
Fuel system
|
Injection |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
NCR CORSE racing slipper clutch system |
|
Exhaust system
|
NCR full exhaust system in Titanium, 2 into 1, 2 into 1 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
NCR, frame in carbon fiber |
|
Front suspension
|
Ohlins FGR000 43 mm with adjustable off-set, tuned by NCR CORSE |
|
Rear suspension
|
Progressive linkage with fully adjustable Ohlins TTX monoshock with length adjustment. Tuned by NCR CORSE |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
190/55-R17 |
|
Front brakes
|
Single disc. 2-piston Brembo Racing monoblock caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc. 2-piston Brembo Racing monoblock caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
NCR carbon fiber wheels |
|
Physical measures and capacities |
|
Dry weight
|
145.0 kg (319.7 pounds) |
|
Power/weight ratio
|
1.3793 HP/kg |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Other specifications |
|
Color options
|
Custom colors. |
|
Starter
|
Electric |
|
Instruments
|
AIM MXL PISTA with via Can to EFI Euro 4 ECU connection and USB PC connection |
|
Comments
|
Fuel tank, subframe, fairing kit, front fender, seat tail/subframe and front fairing stay are completely made in carbon fiber. NCR Titanium rearset kit, NCR Titanium fuel cap, NCR Titanium clutch cover, NCR Titanium/Al 7075 clip on set, NCR triple clamps kit in aluminum from billet with special Nipploy treatment. |
