| NCR's profilation of this bike |
| The bikes were ridden by NCR Factory rider Valter Bartolini and Canadian Andrew Nelson. Between the two riders, they won all 7 rounds of the championship including all 7 pole positions and all new track records at every track. |
|
General information |
|
Motorcycle name
|

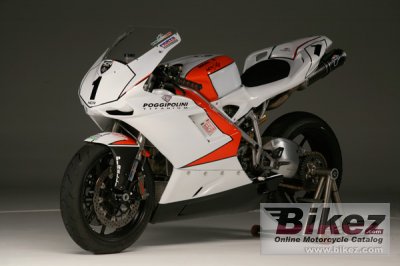

NCR 848 |
|
Model year
|
2010 |
|
Category
|
Sport |
| Price as new | US$ 81000. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
848.0 ccm (51.74 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
145.0 HP (105.8 kW)) @ 12500 RPM |
|
Torque
|
118.0 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 10000 RPM |
|
Fuel system
|
Injection. NCR Corse-EFI, EFI Euro 1, NCR Racing Harness with interface with AMI MXL PISTA display. NCR-EFI system accepts full mapping capabilities along with Lambda interface for closed loop mapping control. |
|
Cooling system
|
Oil & air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Ducati 848 frame. |
|
Front suspension
|
Showa original OEM fork with Ohlins-NCR internal damping systems. NCR fork bottoms from billet with 100 mm spacing. Triple clamps made from AL 7075 with adjustable offset from 28 to 36 mm in 1 mm increments. |
|
Rear suspension
|
Ohlins TTX tuned by NCR |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Single disc. WAVE Braking-NCR, radial Brembo Racing monoblock with billet NCR fork bottoms. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. WAVE Braking-NCR, Brembo Racng 2 piston. |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
155.0 kg (341.7 pounds) |
|
Power/weight ratio
|
0.9355 HP/kg |
|
Other specifications |
|
Color options
|
Custom |
|
Starter
|
Electric |
|
Comments
|
NCR-848 motor has titanium connecting rods carved out of billet, high compression forged pistons with single piston ring, titanium valves, ported heads, lightened gearbox, balanced crankshaft, custom wet-type slipper clutch by STM for NCR, full racing aluminum radiator and oil cooler - relocated to accept full range of offsets of the front suspension, all fasteners in titanium. Marchisini forged aluminum wheels. |
