| MZ' profilation of this bike |

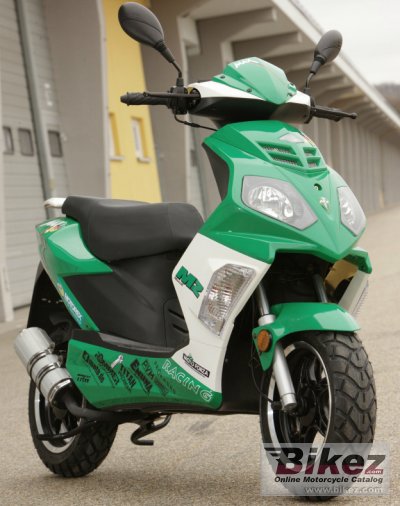

| The sporty 50cc scooter MAX 50-2T is ready to go. Befitting for propulsion provides a powerful two-stroke engine, which sits in a sporty chassis and ensures a great ride.
|
|
General moped information |
|
Model
|
MZ Max 50 2T |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.3 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
3.5 HP (2.5 kW)) @ 7300 RPM |
|
Top speed
|
45.0 km/h (28.0 mph) |
|
Compression
|
7.6:1 |
|
Bore x stroke
|
39.0 x 41.5 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Variomatic |
|
Emission details
|
Euro II |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
83.0 kg (183.0 pounds) |
|
Power/weight ratio
|
0.0420 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Green/white, blue/silver, black/silver |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 7Ah battery |
|
Light
|
Dual headlights |
|
Carrying capacity
|
Storage compartment under the seat |
|
Comments
|
German brand. MZ is an abbreviation of Motorenwerke Zschopau. Model also called MZ-Roller Max 50 2T. |
