General information |
|
Motorcycle name
|

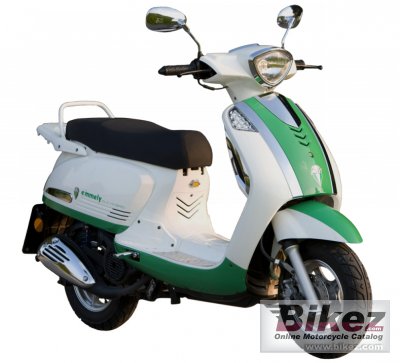

MZ Emmely EL3-Hybrid |
|
Year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Hybrid with 1.0 kW electromotor |
|
Power
|
7.0 HP (5.1 kW)) @ 7500 RPM |
|
Torque
|
7.1 Nm (0.7 kgf-m or 5.2 ft.lbs) @ 5500 RPM |
|
Top speed
|
82.0 km/h (51.0 mph) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Variomatic |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube |
|
Front suspension
|
Telecsopic fork |
|
Rear suspension
|
Single shock |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Seat
|
2- person seat |
|
Physical measures and capacities |
|
Dry weight
|
111.0 kg (244.7 pounds) |
|
Power/weight ratio
|
0.0631 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Other specifications |
|
Color options
|
Green/white, blue/silver, black/silver |
|
Starter
|
Electric |
|
Instruments
|
Analogue with battery control |
|
Comments
|
LiFePh battery. 6-9 hour charging. Range 25 km. Max 35 km/h with electric engine. German brand. MZ is an abbreviation of Motorenwerke Zschopau. |
