MZ Emmely EL2-Hybrid 20112011 MZ Emmely EL2-Hybrid specifications, pictures, reviews and rating |

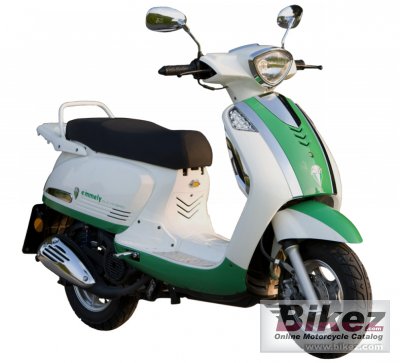

 2011 MZ Emmely EL2-Hybrid. Picture credits - MZ. Submit more pictures.
|
| General moped information | |
|---|---|
| Model name | MZ Emmely EL2-Hybrid |
| Year model | 2011 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.6 ccm (3.03 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Engine details | Hybrid with 0.6 kW electric engine |
| Effect | 2.9 HP (2.1 kW)) @ 6500 RPM |
| Torque | 3.3 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5500 RPM |
| Top speed | 45.0 km/h (28.0 mph) |
| Compression | 10.0:1 |
| Bore x stroke | 39.0 x 41.5 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Variomatic |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 99.0 kg (218.3 pounds) |
| Power/weight ratio | 0.0288 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1290 mm (50.8 inches) |
| Other specifications | |
| Color options | Green/white, blue/silver, black/silver |
| Starter | Electric & kick |
| Comments | Range with electric engine 30 km. LithiumIronPhosphate battery. 67-9 hours charging. MZ is an abbreviation of Motorenwerke Zschopau, Germany. |
