| MV Agusta's profilation of this bike |
| The cult of speed. |
|
General information |
|
Model name
|

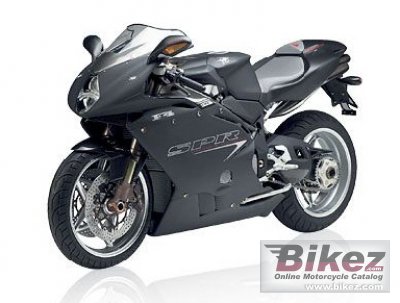

MV Agusta F4 SPR |
|
Model year
|
2009 |
|
Category
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
749.0 ccm (45.70 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
146.0 HP (106.6 kW)) @ 12900 RPM |
|
Torque
|
85.0 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 10600 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
73.8 x 43.8 mm (2.9 x 1.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. “Weber Marelli” 1,6 M ignition - injection integrated system; induction discharge electronic ignition,“Multipoint” electronic injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisk in oil bath |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis.Thermoplastic and carbon fiber fairings. |
|
Front suspension
|
“UPSIDE - DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive monoshock |
|
Rear wheel travel
|
118 mm (4.6 inches) |
|
Front tire
|
120/65-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
221 mm (8.7 inches) |
|
Physical measures and capacities |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall width
|
685 mm (27.0 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Special edition bike. |
