| MV Agusta's profilation of this bike |
| Like other challenges in the past of beating whatever the opposition has had to offer, this new challenge has again called for courage, desire, passion, sacrifice, and investment from the “Team MV”. The goal was simple – to create the best sports bike in the world and any lesser result would have been unthinkable. |
|
General information |
|
Model name
|

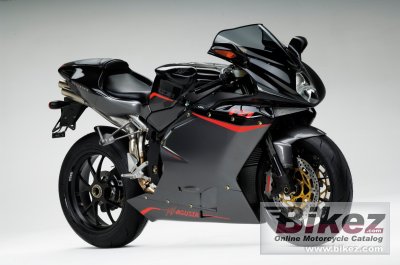

MV Agusta F4 RR 312 1078 |
|
Year
|
2010 |
|
Category
|
Sport |
| Price as new | US$ 24999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1078.3 ccm (65.80 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
190.0 HP (138.7 kW)) @ 12200 RPM |
|
Torque
|
124.0 Nm (12.6 kgf-m or 91.5 ft.lbs) @ 8200 RPM |
|
Top speed
|
300.0 km/h (186.4 mph) |
|
Max RPM
|
13000 |
|
Compression
|
13.1:1 |
|
Bore x stroke
|
79.0 x 55.0 mm (3.1 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
“Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis (TIG welded) |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 4-piston |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Power/weight ratio
|
0.9896 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2007 mm (79.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Silver/red, black/white, black/silver |
