General information |
|
Model name
|

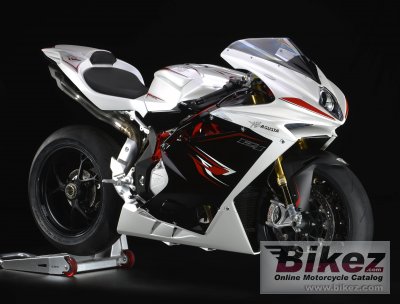

MV Agusta F4 RR |
|
Year
|
2013 |
|
Category
|
Sport |
| Price as new | Euro 23990. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Engine details
|
Titanium intake and exhaust valves |
|
Power
|
201.0 HP (146.7 kW)) @ 13600 RPM |
|
Torque
|
111.0 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 9600 RPM |
|
Top speed
|
297.5 km/h (184.9 mph) |
|
Compression
|
13.4:1 |
|
Bore x stroke
|
79.0 x 50.9 mm (3.1 x 2.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Weber Marelli 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-disc with back torque limiting device and Brembo radial pump/lever assembly |
|
Driveline
|
6-speed constant mesh |
|
Exhaust system
|
4-2-1-4 exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel Tubular Trellis. Aluminium alloy adjustable swingarm pivot height. |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Öhlins EC Nix hydraulic “UPSIDE DOWN” front forks with TiN superficial treatment. Completely adjustable electronically controlled compression and rebound damping with manual, spring preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Progressive, single shock absorber Öhlins TTX. Fully adjustable hydraulic electronically controlled compression and rebound damping with manual, spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
200/55-ZR17 |
|
Front brakes
|
Double disc. Floating disc. Brembo GP radial-type, single-piece with 4 pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Wheels
|
Forged aluminium alloy |
|
Physical measures and capacities |
|
Dry weight
|
190.0 kg (418.9 pounds) |
|
Power/weight ratio
|
1.0579 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Ground clearance
|
115 mm (4.5 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Pearl White/Black, Red/White |
|
Starter
|
Electric |
|
Electrical
|
12 V 8.6 Ah battery |
