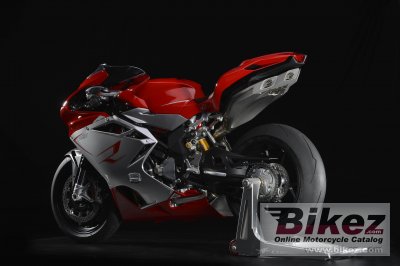

MV Agusta F4 R 20132013 MV Agusta F4 R specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| Our objective was to create a vehicle that exceeded the expectations of customers based on a new technological platform, focused on electronics and its fundamental contribution improving power delivery of the engine and driving dynamics on the road and on the track. All this combined with a thorough review of the engine to provide competitive performance. |
| General information | |
|---|---|
| Model | MV Agusta F4 R |
| Year model | 2013 |
| Type | Sport |
| Price as new | Euro 18990. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 998.0 ccm (60.90 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Engine details | Radial valve |
| Effect | 195.0 HP (142.3 kW)) @ 13400 RPM |
| Torque | 110.8 Nm (11.3 kgf-m or 81.7 ft.lbs) @ 9600 RPM |
| Top speed | 291.2 km/h (180.9 mph) |
| Compression | 13.4:1 |
| Bore x stroke | 79.0 x 50.9 mm (3.1 x 2.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Integrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-disc with back torque limiting device |
| Driveline | 6-speed constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel Tubular Trellis. Aluminium alloy swing arm. |
| Trail | 100 mm (4.0 inches) |
| Front suspension | Marzocchi “UPSIDE - DOWN” telescopic hydraulic fork with adjustable rebound-compression damping and external spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Adjustable monoshock with high and low speed compression settings |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 200/55-ZR17 |
| Front brakes | Double disc. Brembo radial-type, single-piece with 4 pistons |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 210 mm (8.3 inches) |
| Wheels | Forged aluminium alloy rims |
| Physical measures and capacities | |
| Dry weight | 191.0 kg (421.1 pounds) |
| Power/weight ratio | 1.0209 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 750 mm (29.5 inches) |
| Ground clearance | 115 mm (4.5 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | White, Red/Silver |
| Starter | Electric |
| Electrical | 12 V - 8.6 Ah battery. Alternator 350 W at 5000 r.p.m. |
