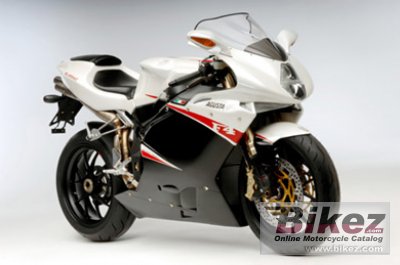

MV Agusta F4 R312 20102010 MV Agusta F4 R312 specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| The principle behind the creation of the F4 R 312 was to create a machine that would immediately meet our riders´ requirements and keep them one step ahead of the opposition. It is the end result that counts - the ability to get into a corner before the others and be the first to leave it. |
| General information | |
|---|---|
| Model name | MV Agusta F4 R312 |
| Year model | 2010 |
| Type | Sport |
| Price as new | US$ 24995. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 998.0 ccm (60.90 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 183.0 HP (133.6 kW)) @ 12400 RPM |
| Torque | 115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
| Top speed | 302.0 km/h (187.7 mph) |
| Maximum RPM | 13000 |
| Compression | 13.1:1 |
| Bore x stroke | 76.0 x 55.0 mm (3.0 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Marzocchi USD Ø50 mm R.A.C. (Road Advanced Component) forks |
| Front wheel travel | 129 mm (5.1 inches) |
| Rear suspension | Adjustable monoshock with high and low speed compression settings |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/55-ZR17 |
| Front brakes | Double disc. Bremo |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities | |
| Dry weight | 192.0 kg (423.3 pounds) |
| Power/weight ratio | 0.9531 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length | 2007 mm (79.0 inches) |
| Overall width | 685 mm (27.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1408 mm (55.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Silver/red, pearl white/black, black/gray |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 MV Agusta F4 R312 discussion group or the general MV Agusta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
