| MV Agusta's profilation of this bike |
| The subdued sporty tone of its new livery conceals an updated engine equipped with the Weber Marelli 5SM engine management system that turns the extraordinary energy developed by the Italian 4-cylinder engine into a powerful and progressive driving force. |
|
General information |
|
Motorcycle name
|

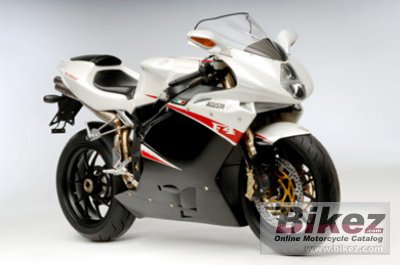

MV Agusta F4 R312 |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
998.0 ccm (60.90 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Effect
|
183.0 HP (133.6 kW)) @ 12400 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
|
Top speed
|
300.0 km/h (186.4 mph) |
|
Maximum RPM
|
13000 |
|
Compression
|
13.1:1 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Power/weight ratio
|
0.9531 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2007 mm (79.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Gray/red, pearl/black |
|
Starter
|
Electric |
