| MV Agusta's profilation of this bike |
| An engine, that combined with the massive power of the unprecedented radial braking system and the sublime handling provided by the ultralight Brembo wheels, allows the F4 R312 to ensure its supremacy amongst the elite of the fastest motorcycles in the world. |
|
General information |
|
Model
|

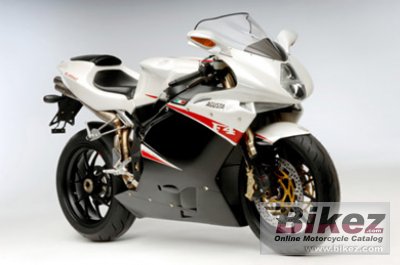

MV Agusta F4 R312 1 plus 1 |
|
Year
|
2009 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
183.0 HP (133.6 kW)) @ 12400 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
|
Top speed
|
300.0 km/h (186.4 mph) |
|
Max RPM
|
13000 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. MPFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
193.0 kg (425.5 pounds) |
|
Power/weight ratio
|
0.9482 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2007 mm (79.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Other specifications |
|
Color options
|
Red/grey, black/white |
|
Starter
|
Electric |
