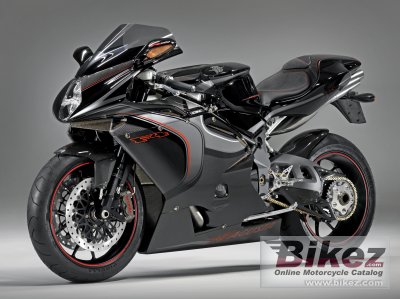

MV Agusta F4 CC Claudio Castiglioni 20102010 MV Agusta F4 CC Claudio Castiglioni specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| In addition to what the components in full view let us sense, the F4CC in its elegant black dress underlines the elegance and sophistication of a beautiful woman in a “little black number”. The deliberate contrast between painted areas and bare carbon-fibre, between the fairing, the tank and the tail create a piece of modern architecture. Only in the prestige sector of the automotive field can such exclusive design be found. |
| General information | |
|---|---|
| Model | MV Agusta F4 CC Claudio Castiglioni |
| Year of manufacture | 2010 |
| Type | Sport |
| Price as new | US$ 120000. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1078.0 ccm (65.78 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 200.0 HP (146.0 kW)) @ 12200 RPM |
| Torque | 125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 9000 RPM |
| Top speed | 312.0 km/h (193.9 mph) |
| Maximum RPM | 13000 |
| Compression | 13.0:1 |
| Bore x stroke | 79.0 x 55.0 mm (3.1 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” electronic injection; |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Exhaust system | Lambda probe, catalyzer and one-piece exhaust system |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel tubular trellis, magnesium |
| Front suspension | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Front wheel travel | 129 mm (5.1 inches) |
| Rear suspension | Type Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload (hydraulic control) |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/55-ZR17 |
| Front brakes | Double disc. Bremo, 4-piston caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo, 4-piston caliper |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities | |
| Dry weight | 187.0 kg (412.3 pounds) |
| Power/weight ratio | 1.0695 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length | 2007 mm (79.0 inches) |
| Overall width | 685 mm (27.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1408 mm (55.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Comments | Over 90% of the components are individually tailor made. Only 100 units of the hand-built F4 CC will be made for worldwide distribution. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 MV Agusta F4 CC Claudio Castiglioni discussion group or the general MV Agusta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this MV Agusta. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2010 MV Agusta F4 CC Claudio Castiglioni for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this MV Agusta bike | |
Engine performance for the 2010 MV Agusta F4 CC Claudio Castiglioni:  (79.0 out of 100)Click here for complete rating. |
|
