General information |
|
Model
|

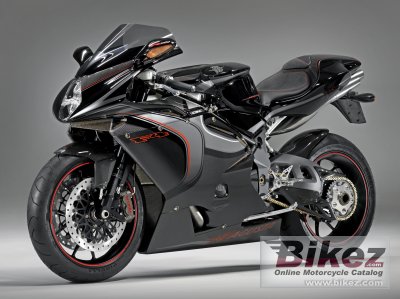

MV Agusta F4 CC Claudio Castiglioni |
|
Model year
|
2009 |
|
Category
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1078.0 ccm (65.78 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
200.0 HP (146.0 kW)) @ 12200 RPM |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 9000 RPM |
|
Top speed
|
312.0 km/h (193.9 mph) |
|
Max RPM
|
13000 |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
79.0 x 55.0 mm (3.1 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” electronic injection; |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Type CrMo Steel tubular trellis, TIG welded. |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Type Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload (hydraulic control) |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. 4-piston caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
187.0 kg (412.3 pounds) |
|
Power/weight ratio
|
1.0695 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2007 mm (79.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
