| MV Agusta's profilation of this bike |
| The F4 Ago is a motorcycle of irresistible attraction, dominated by technology and enriched by prestigious components capable of offering concepts recalling the feats of MV AGUSTA and Giacomo Agostini. |
|
General information |
|
Model name
|

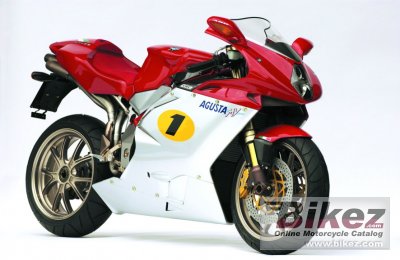

MV Agusta F4 Agostini |
|
Year model
|
2006 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
748.9 ccm (45.70 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Effect
|
143.9 HP (105.0 kW)) @ 13000 RPM |
|
Top speed
|
285.8 km/h (177.6 mph) |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
73.7 x 43.2 mm (2.9 x 1.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet, multi - disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis and aluminium alloy |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Rear suspension
|
Progressive single shock absorber with rebound compression damping and spring preload |
|
Front tire
|
120/65-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
191.0 kg (421.1 pounds) |
|
Power/weight ratio
|
0.7534 HP/kg |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1398 mm (55.0 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
