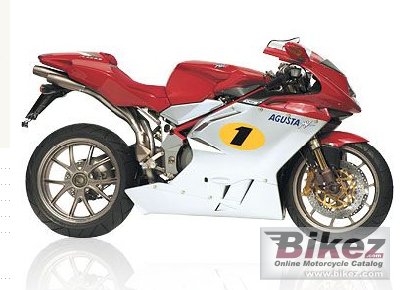

MV Agusta F4 Ago 20092009 MV Agusta F4 Ago specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| The legend becomes bike. |
| General information | |
|---|---|
| Model | MV Agusta F4 Ago |
| Year | 2009 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 748.9 ccm (45.70 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power | 146.0 HP (106.6 kW)) @ 13000 RPM |
| Torque | 82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) |
| Top speed | 285.8 km/h (177.6 mph) |
| Max RPM | 13900 |
| Compression | 13.0:1 |
| Bore x stroke | 73.7 x 43.2 mm (2.9 x 1.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. “Weber Marelli” 1,6 M ignition - injection integrated system; induction discharge electronic ignition,“Multipoint” electronic injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet, multi - disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel tubular trellis and aluminium alloy |
| Front suspension | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Rear suspension | Progressive single shock absorber with rebound compression damping and spring preload |
| Front tire | 120/65-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities | |
| Dry weight | 191.0 kg (421.1 pounds) |
| Power/weight ratio | 0.7644 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1398 mm (55.0 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Red/white/yellow |
| Comments | Special edition bike. |
