| MV Agusta's profilation of this bike |
| It is the symbol of the beauty on two wheels and reflects the inspiration and understanding that has enlivened its designers in defining this motorcycle cult object. |
|
General information |
|
Model name
|

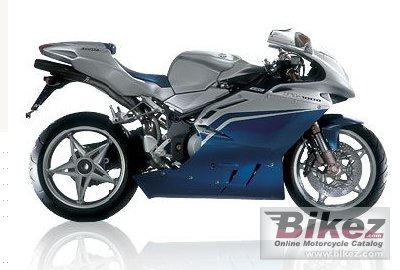

MV Agusta F4 1000 S |
|
Year
|
2009 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
998.0 ccm (60.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
166.0 HP (121.2 kW)) @ 11750 RPM |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 10200 RPM |
|
Top speed
|
301.0 km/h (187.0 mph) |
|
Max RPM
|
13000 |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate in oil bath |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis and aluminium alloy |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
126 mm (5.0 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
192.0 kg (423.3 pounds) |
|
Power/weight ratio
|
0.8646 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2007 mm (79.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1408 mm (55.4 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Blue/gray |
|
Starter
|
Electric |
