| MV Agusta's profilation of this bike |
| The F4 is a legend dedicated to motorcycle style and technique. The star of this new race is the new propeller able to express the domineering 166 horse power strength. |
|
General information |
|
Model name
|

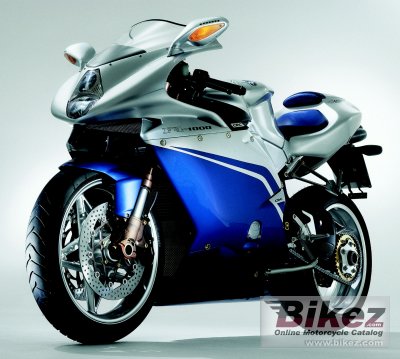

MV Agusta F4 1000 S |
|
Year of manufacture
|
2006 |
|
Type
|
Sport |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
998.0 ccm (60.90 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
163.6 HP (119.4 kW)) @ 11750 RPM |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 10200 RPM |
|
Top speed
|
282.8 km/h (175.7 mph) |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
76.0 x 55.0 mm (3.0 x 2.2 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet, multi - disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis (TIG welded) and aluminium alloy |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
191.0 kg (421.1 pounds) |
|
Power/weight ratio
|
0.8565 HP/kg |
|
Overall length
|
2007 mm (79.0 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 MV Agusta F4 1000 S discussion group or the general MV Agusta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this MV Agusta bike
|
Racing track capabilities for the 2006 MV Agusta F4 1000 S:
 (87.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
