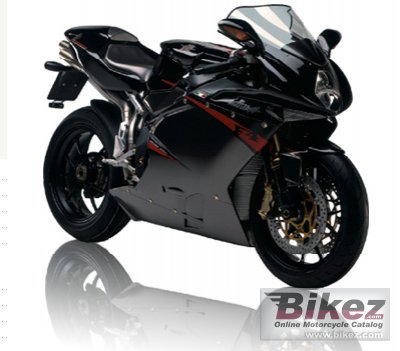

MV Agusta F4 1000 R 1 plus 1 20092009 MV Agusta F4 1000 R 1 plus 1 specifications, pictures, reviews and rating |
| MV Agusta's profilation of this bike |
| With numerous innovations, the F4 is a benchmark in contemporary motorcycling. |
| General information | |
|---|---|
| Model | MV Agusta F4 1000 R 1 plus 1 |
| Year model | 2009 |
| Type | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 998.0 ccm (60.90 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 174.0 HP (127.0 kW)) @ 11900 RPM |
| Torque | 111.0 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 10000 RPM |
| Top speed | 301.7 km/h (187.5 mph) |
| Maximum RPM | 13000 |
| Compression | 13.0:1 |
| Bore x stroke | 76.0 x 55.0 mm (3.0 x 2.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, Multipoint electronic injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel tubular trellis (TIG welded) |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Rear suspension | Progressive, single shock absorber with rebound compression damping and spring preload |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities | |
| Dry weight | 193.0 kg (425.5 pounds) |
| Power/weight ratio | 0.9016 HP/kg |
| Overall length | 2007 mm (79.0 inches) |
| Overall width | 685 mm (27.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1408 mm (55.4 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Black, red/gray |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 MV Agusta F4 1000 R 1 plus 1 discussion group or the general MV Agusta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this MV Agusta. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 MV Agusta F4 1000 R 1 plus 1 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this MV Agusta bike | |
Racing track capabilities for the 2009 MV Agusta F4 1000 R 1 plus 1:  (82.3 out of 100)Click here for complete rating. |
|
