General information |
|
Model
|

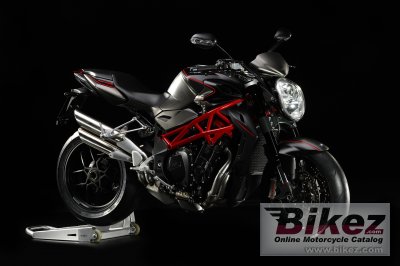

MV Agusta Brutale RR 1090 |
|
Year of manufacture
|
2012 |
|
Type
|
Naked bike |
| Price as new | Euro 18800. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1078.0 ccm (65.78 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
158.0 HP (115.3 kW)) @ 11900 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 10100 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
79.0 x 55.0 mm (3.1 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Magneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection |
|
Lubrication system
|
Double rotor pump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Slipper clutch, |
|
Driveline
|
6-speed constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis (TIG welded). Aluminium alloy swing arm. |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Bremo, 4-piston caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo, 4-piston caliper |
|
Diameter
|
210 mm (8.3 inches) |
|
Wheels
|
Forged aluminium alloy |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Power/weight ratio
|
0.8634 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2093 mm (82.4 inches) |
|
Overall width
|
760 mm (29.9 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1438 mm (56.6 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red/blue/white, red/silver, red/grey/black |
|
Starter
|
Electric |
|
Electrical
|
12V 8.6Ah battery. |
