| MV Agusta's profilation of this bike |
| The new 910cc engine quite simply outshines all other machines in this category. |
|
General information |
|
Model name
|

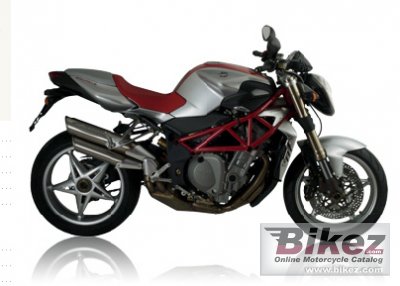

MV Agusta Brutale 910S |
|
Year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
909.0 ccm (55.47 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
139.0 HP (101.5 kW)) @ 11000 RPM |
|
Torque
|
96.0 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 8000 RPM |
|
Top speed
|
262.0 km/h (162.8 mph) |
|
Max RPM
|
12000 |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
75.9 x 43.2 mm (3.0 x 1.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis (TIG welded) and aluminium alloy. Thermoplastic fairings. |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
126 mm (5.0 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/65-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc. 6-piston |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. 4-piston |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.7514 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2020 mm (79.5 inches) |
|
Overall width
|
760 mm (29.9 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red/grey, grey/red, orange/black |
|
Starter
|
Electric |
|
Comments
|
Sometimes called F4 Brutale 910S and Brutal S. |
