| MV Agusta's profilation of this bike |
| The Brutale S concentrates all the technical features of the Serie Oro, offered in a more affordable manner thanks to the use of less exclusive material and to mass production. |
|
General information |
|
Model name
|

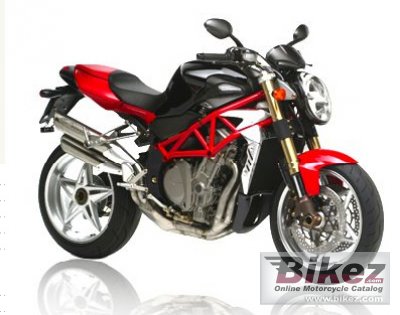

MV Agusta Brutale 750S |
|
Model year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
748.9 ccm (45.70 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
127.0 HP (92.7 kW)) @ 12500 RPM |
|
Top speed
|
249.9 km/h (155.3 mph) |
|
Max RPM
|
13100 |
|
Compression
|
12.0:1 |
|
Fuel system
|
Injection. “Weber Marelli” 1,6 M ignition - injection integrated system; induction discharge electronic ignition,“Multipoint” electronic injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo Steel tubular trellis and magnesium alloy |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
|
Front wheel travel
|
118 mm (4.7 inches) |
|
Rear suspension
|
Progressive, single shock absorber with rebound compression damping and spring preload |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/65-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
178.6 kg (393.8 pounds) |
|
Power/weight ratio
|
0.7110 HP/kg |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1414 mm (55.7 inches) |
|
Other specifications |
|
Color options
|
Red/black, red/grey, grey/red |
|
Starter
|
Electric |
|
Comments
|
Sometimes called F4 Brutale 750 S |
